In many structural situations, decking slabs are directly adjacent to adjoining masonry.
In these situations, it is important to maintain a distance between the terrace slabs and the masonry.
This is due to the following reasons:
damage to the masonry should be avoided
Optimal water drainage should remain guaranteed
the stability of the entire construction must be ensured
The perimeter spacer allows you to meet these requirements.
The clip ensures sufficient edge distance, prevents damage and facilitates water drainage.
Likewise, this spacer is not completely rigid, so it can accommodate (very) limited movements of the plate.
This spacer is suitable for both pedestal with 2 mm and stilt layer with 4 mm joints.
You can see a detailed illustration of the ‘Professional’ pedestal as follows:
Installation of the perimeter spacer
The installation of the perimeter spacer is very easy:
Step 1:
The pedestal is positioned at the edge.
To achieve a closer distance to the wall, the pedestal can also be cut to size before at the bottom of the pedestal.
Step 2:
The perimeter spacer is placed and moved so that the outermost part touches the wall.
Step 3:
The slab is put on.
In addition, the spacer can also be permanently fixed to the pedestal with a commercially available mounting montage adhesive.
The following pictures illustrate the installation using the pedestal ‘Titan’:
Step 1: Positioning the pedestal, cutting the base to size and placing the perimeter spacer
Step 2: Placing a narrow edge plate (here in the photo with a width of 12 cm)
Step 3: More slabs are placed
In the corners, the perimeter spacers are offset from each other to ensure a neat finish on both sides:
Assembling on raised floor system ‘SmartWabic’
The perimeter spacer is also an indispensable installation aid for our raised floor system.
It
also protects the edge area here and
fixes the outermost edge slab
The assembly steps are as follows:
Step 1: Inserting the Fix Clip
Representation of the engaged Fix-Clip
Step 2: Placing the perimeter spacer and screwing it to the Fix Clip
Step 3: Placing the slab
installation for drainage channels
Our perimeter spacers also used for fixing drainage channels.
Please proceed according to the pictures shown below:
Step 1: Placement of the drain linear channel to determine the exact position and placement of spacers.
Detail view
Step 2:
Remove the grating and screw the base body of the drain linear channel to the pedestal.
Be sure to use stainless steel screws for this purpose.
Step 3:
Laying the adjacent slabs to stabilize the structure.

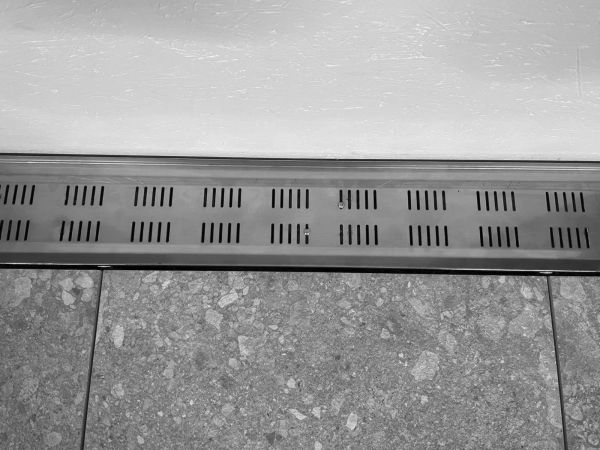

Step 4:
Inserting the cover grating onto the channel base body.
Consideration of the perimeter spacer in the configurator
The configurator automatically calculates the required amount of perimeter spacers.
As soon as closed sides are marked under point 4, the configurator knows that there is a masonry along the specified axes.
Below you can see an example.
Step 1: Selecting closed sides
In the following, you can see these closed sides hatched diagonally on the main drawing area.
… and in the list of materials they are immediately indicated.
sample sets
Samples of perimeter spacers are included in all sample sets Large and X-Large
